MIG

Basic Info.

Model NO.	MIG-250
Frequency Range	High Frequency
Electric Current	Inverter
Work Form	One-Body
Type	CO2 Gas Shield

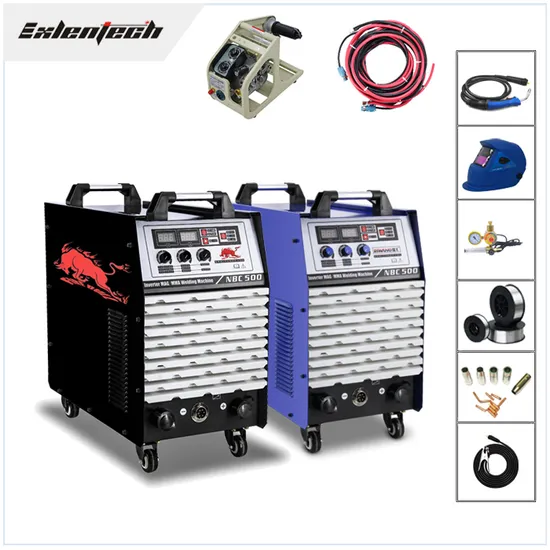

Name	MIG Welding Machine
IGBT	4PCS 40n120 IGBT
Diode	6PCS Sanken Xs4603
Capacitors	6PCS 680UF/400V
Accessories	MIG Torch,36V Ragulator,Air Pipe,36V Ragulator,Hos
Transport Package	Carton
Specification	580x385x495mm
Trademark	as required
Origin	Shenzhen China
HS Code	85153900
Production Capacity	3000PCS/Month

Product Description

MIG Welding Machine Product Characteristics:
*CO2 shielded welding machine Apply to thin,medium and thick sheet which is more than 0.8mm.*Saving cost,promote efficiency,improve welding quality.*MIG welder easy to operate,economical and practical.*High welding speed and high rate of arc starting.*Automatic compensation of electric network voltage fluctuation,stable current.*Apply to weld carbon steel,alloyed steel,mild steel etc,can use many kinds of welding wire.*Little spatter,deep welding pool,esthetic shaping of welding seams. Factory show Quality test Exhibition FAQ
MOQ: lf you need OEM service or need to distribute our brand?the quantity will be different accordinglyand different model with different MOQ.Please Contact us for more information If you need small quantity for your own useand you can accept our brandsmall quantity could be acceptable Payment: TT/LC/Paypal/Western Union etc.TT payment would be preferred for bulk quantity order: 30% deposit and the balance 70% before the shipmentDelivery time: Sample order or small quantity orderwe can delivery within 3 days. OEM service or other biq orderit takes around 20 days after confirming the advance payment.Samples: Yes,Sample order are acceptedThe samples will be charged reasonably according to the negotiation between usQ: Can we mix different items inonecontainer?A: Yes you can order ditferent model to mix one containeand even you need some other products.we would like to offer help.Q:What about the after salesservice?A: 1.12 months quarantee time willbe providedThe effective time calculated from the date of BL 1% to 2% free spare parts(PCB or other easy-damage components to you for your maintenance. 2.lf need anv spares uraently we will send by Courier or by air within machine warranty period If you meet any problem which can't be fixed by yourselfwe will provide technical support through video. 3.If any other urgent problem happenour salesmen and technicians will go to your company to inspect and repairand offer solutions.

Model:	MIG-250Y
Input power Voltage Frequency(V,Hz):	AC380(three phase)±15%,50/60
Rated input power capacity(KVA) :	8.3
Rated output current(A):	250
Rated output voltage(V):	26.5
Duty cycle (%):	60
Output current range.(A):	50-250
Output voltage range(V):	16.5-26.5
Insulation class:	F
Case protection degree:	IP21S
Overall dimension(mm):	580×385×495
Weight(KG):	34
Efficiency(%):	85
Feeding speed(m/min):	2.5-13
Type of wire feeder:	Build-in
Diameter of the wire feeder(mm):	270
Post-flow time(S):	1±0.5
Power factor (COSφ):	0.93
Earth wire(mm2):	6
Welding thickness(mm):	>0.8
Diameter of welding wire(mm):	>0.8/1.0
