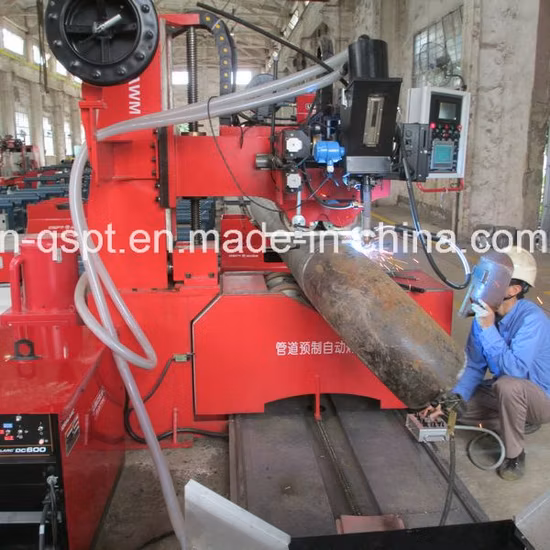

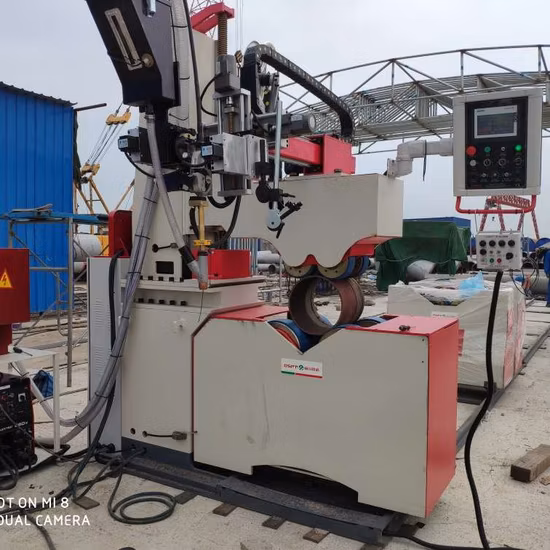

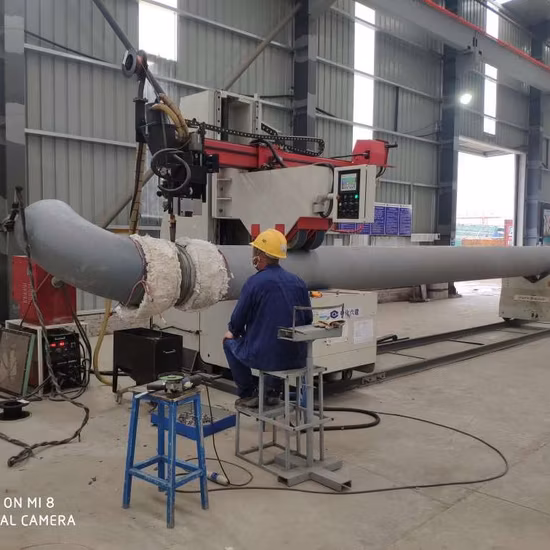

Multi Process Automatic Pipe Welding Machine (TIG+MIG+SAW)

Basic Info.

Model NO.	SPAWM-24Ab; SPAWM-32Ab
Structure Type	Workshop Type Piping
Advantage	High Speed in Welding Heavy Wall Thickness Pipes
Welding Type	Automatic Butt Welding
Usage	Piping Spool Fabrication
Voltage	380V/415V/440V-3pH
Transport Package	Sea Worthy Packing
Specification	SGS, CSA, BV, TUV, CE, ISO
Trademark	QSPT
Origin	Made in Shanghai, China
HS Code	8515800090
Production Capacity	50 Sets. Month

Product Description

Automatic Pipe Welding Machine; Piping Welding Machine (S. A. W & Heavy Wall Thickness for piping fabrication)
Model No.: PPAWM-24Ab/32Ab
Performance features
1. On-line Performance: Good (Designed as per the on line equipment of the production line)
2. Application: Broad (pipe and cover welding of various structures of in various industries).
3. Operability: Very good (applicable and easy to operate even if you are a new user within a short period of time)
4. Surface finishing: Good (the welding gun will always be positioned in the optimum position)
5. Driving Reliability: Good (driven with friction; The necessary balance weight shall be provided for the pipe with DN≥ 600 and which the wall thickness is ≥ 40 to balance the serious eccentricity resulted from bending).

Multi Process Automatic Pipe Welding Machine (TIG+MIG+SAW)

Technical parameters
6. Welds applicable: Various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
7. Driving system: Two rows of metal+ rubber compound idler wheel driven by motor.
8. Clamping system: Clamping with double chain clamping mechanism/ clamping with boom clamping mechanism
9. Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.
10. The system includes 2 sets height adjustable trolley supports(one support also work as the weld drive system, it can move along the track), 7.5/9/12 m length rail or acc. To your requests for spool length
11. Counterweight System: Nil
Speed-regulation Mode: VF stepless speed control system
12. Control system: A product of our patented technology.

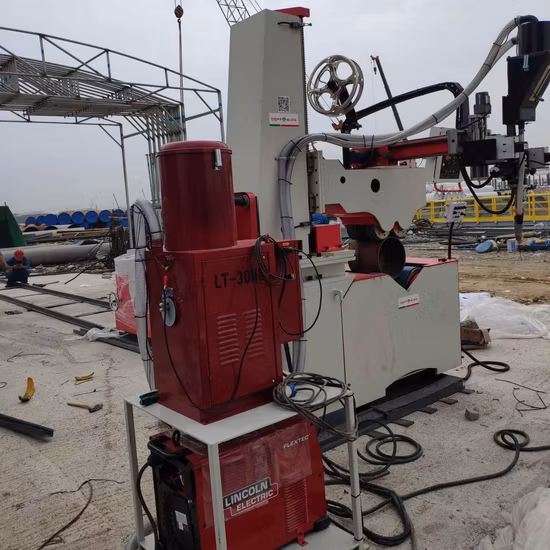

13. Welding Power: , Lincoln power source & welding system etc (or as per customers'demands)
14. Reference List: CNPC, SINOPEC, CNOOC, CNCEC, K. S. S, L & T, CSIC, CSSC, MCC, TECHNIP, TYCO, KEPPEL, DYNA-MAC, SOCOMENIN, C. C. C, CNEG, CHIYODA, EIL, PEC, CASC, ONSHORE etc.
15. Welcome to visit our factory or project site at any time in Shanghai City, P. R. China; For more detail information please contact us.

Technical Description	Standard Type
Welding Efficiency:	Excellent (400-600 inch/day, which is 4 times higher than the manual welding)
Welding compliance rate:	98% min (without re-working for the skilled operator).
Pipe diameter applicable:	DN150-600; DN200-800mm
Pipe wall thickness applicable:	10-60mm
Materials applicable:	carbon steel, alloy steel, stainless steel and cryogenic steel
Welding procedure:	S. A. W
